Detailed description

Next generation IPL – K2 – When Design and technology meet

Intensed Pulsed light (IPL) describes the use of intense pulses of non- coherent light distributed over a range of wavelengths from 400nm to 1200nm. The technology uses specific wavelength ranges to target various chromophores on the skin. This enables effective treatment of a broad spectrum of conditions including vascular and pigment lesions, skin photo aging tratments and unwanted hair removal.
This equipment offers a unique solution with optimal efficiency, safety and userfriendliness.
* New narrow spectrum light technology (DPL) filters that provide an outstanding result, safer, faster and more comfortable treatments.
* Universal handpiece with eleven filters, including two DPL filters, enables an enormous amount of conditions with a single, versatile and cost effective handpiece

Advantages:
– Intelligent A/B mode by one key switch. A smart setting to switch the parameter according to the demand very quickly
– One machine has multiple functions and its handpiece is equiped with a variety of filters to meet the demand of different skin treatments

Precision treatment Heads
– Different specifications are avaliable (38*10mm Fraccional, diam. 8)
– Different sizes of precision treatment head to meet the precise operation for different sizes of spots (which is precisely applied to the complex facial conditions)

Super convenient Handpiece
* Handpiece with display of: Fluence display; buttons  for fluence increase and decrease; start/pause – Saves time and effort and provides a convenient operation
* Adjustable window design in handpiece – COnvenient for operators to choose the therapeutic energy more quickly
* 14*38mm Sapphire treatment Spot Size – closer to touch the skin, no missed treatment areas during operation
* Ergonomic design – easy to handle

Smart Trolley
* Press self locking storage box
* Press to eject smoothly
* Convenient to storage the filters

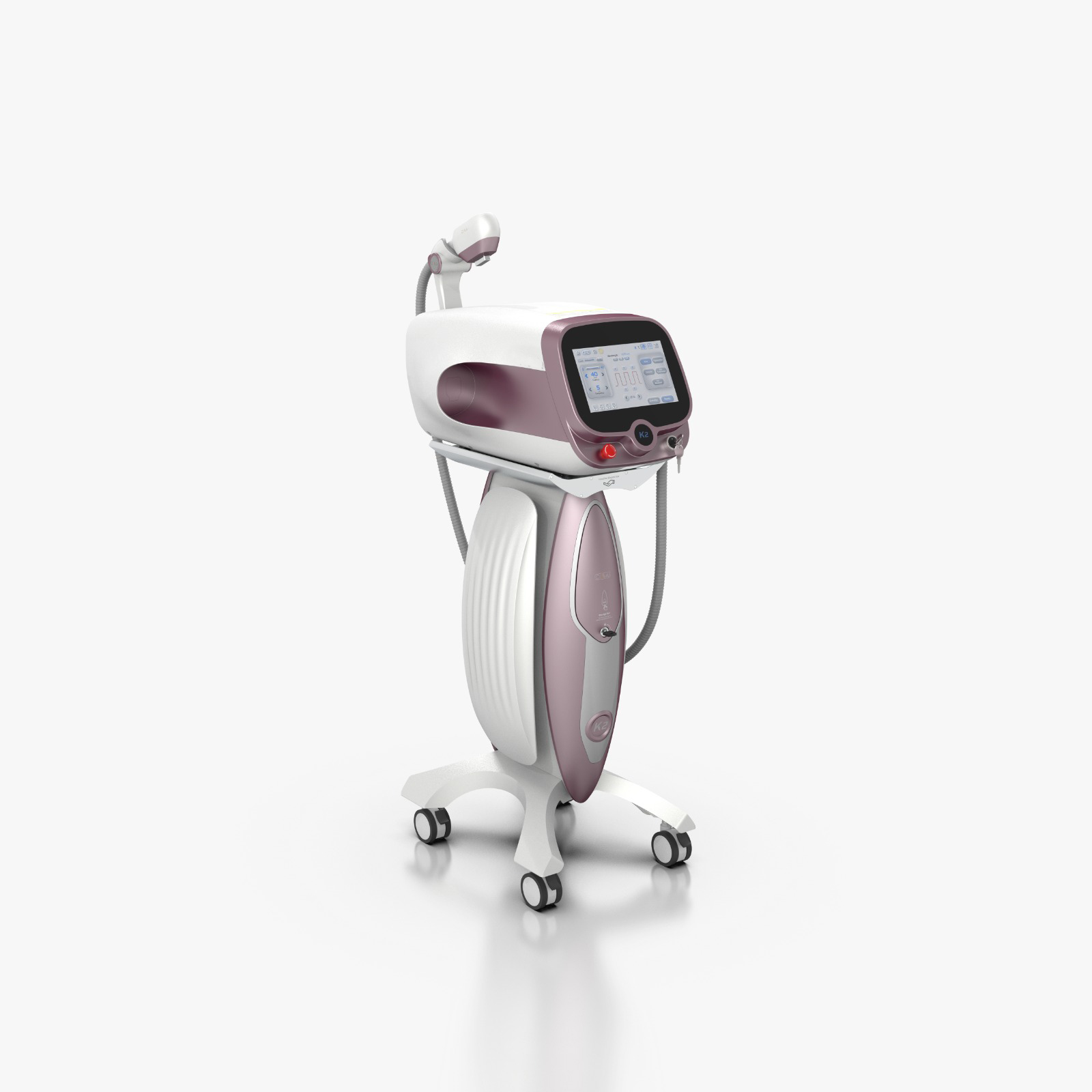

THERAPDERMA K2 IPL

Professional Customization. Combined Treatments.

The THERAPDERMA K2 IPL is an advanced next-generation platform designed to deliver highly effective aesthetic treatments with maximum precision, safety and comfort.

Developed for clinics, aesthetic medicine centers and premium beauty professionals, the THERAPDERMA K2 IPL combines:

✔ IPL Technology
✔ Narrow Spectrum DPL Technology
✔ Intelligent Pulse Control
✔ High-Precision Ergonomic Handpiece
✔ Multiple Professional Filters
✔ Advanced Cooling System

All of this allows faster, more comfortable treatments with outstanding clinical results.

WHAT IS SUPER IPL TECHNOLOGY?

IPL technology uses intense pulses of non-coherent light distributed across wavelengths from 400nm to 1200nm.

Different wavelengths selectively target specific chromophores in the skin such as:

• Melanin
• Hemoglobin
• Sebaceous glands
• Pigmented lesions
• Hair follicles

This allows effective treatment of multiple skin concerns using a single platform.

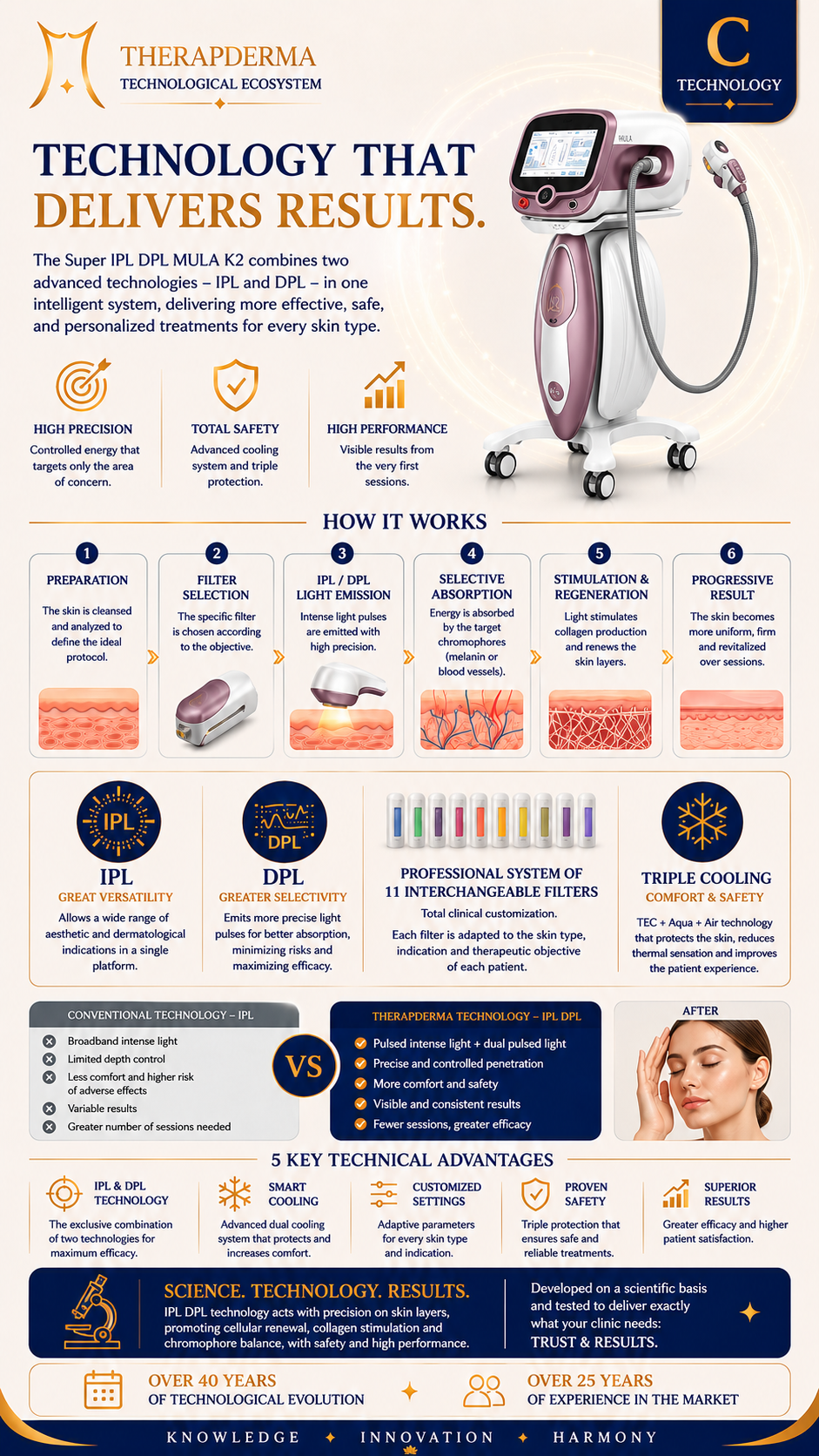

DPL TECHNOLOGY — NARROW SPECTRUM PRECISION

One of the major advantages of the THERAPDERMA K2 IPL is the incorporation of DPL (Dynamic Pulsed Light) technology.

DPL filters narrow the light spectrum, allowing:

✔ More precise energy delivery
✔ Better treatment of vascular and pigmented lesions
✔ Reduced damage to surrounding tissues
✔ Greater treatment comfort
✔ Faster recovery
✔ More effective results with fewer sessions

Compared with traditional IPL systems, DPL technology provides:

• Safer treatments
• Faster procedures
• Increased patient comfort
• More stable clinical outcomes

MAIN TREATMENTS

The THERAPDERMA K2 IPL was developed as a multifunctional platform capable of performing a wide variety of treatments.

Facial Rejuvenation

• Fine lines
• Skin laxity
• Photoaging
• Skin rejuvenation
• Improvement of skin quality

Pigmentation Treatments

• Sun spots
• Age spots
• Freckles
• Melasma
• Hyperpigmentation

Vascular Treatments

• Rosacea
• Telangiectasia
• Facial redness
• Superficial vascular lesions

Acne Treatments

• Active acne
• Sebaceous regulation
• Inflammation
• Post-acne marks

Hair Removal

• Permanent hair reduction
• Facial and body hair removal
• Multiple skin phototypes

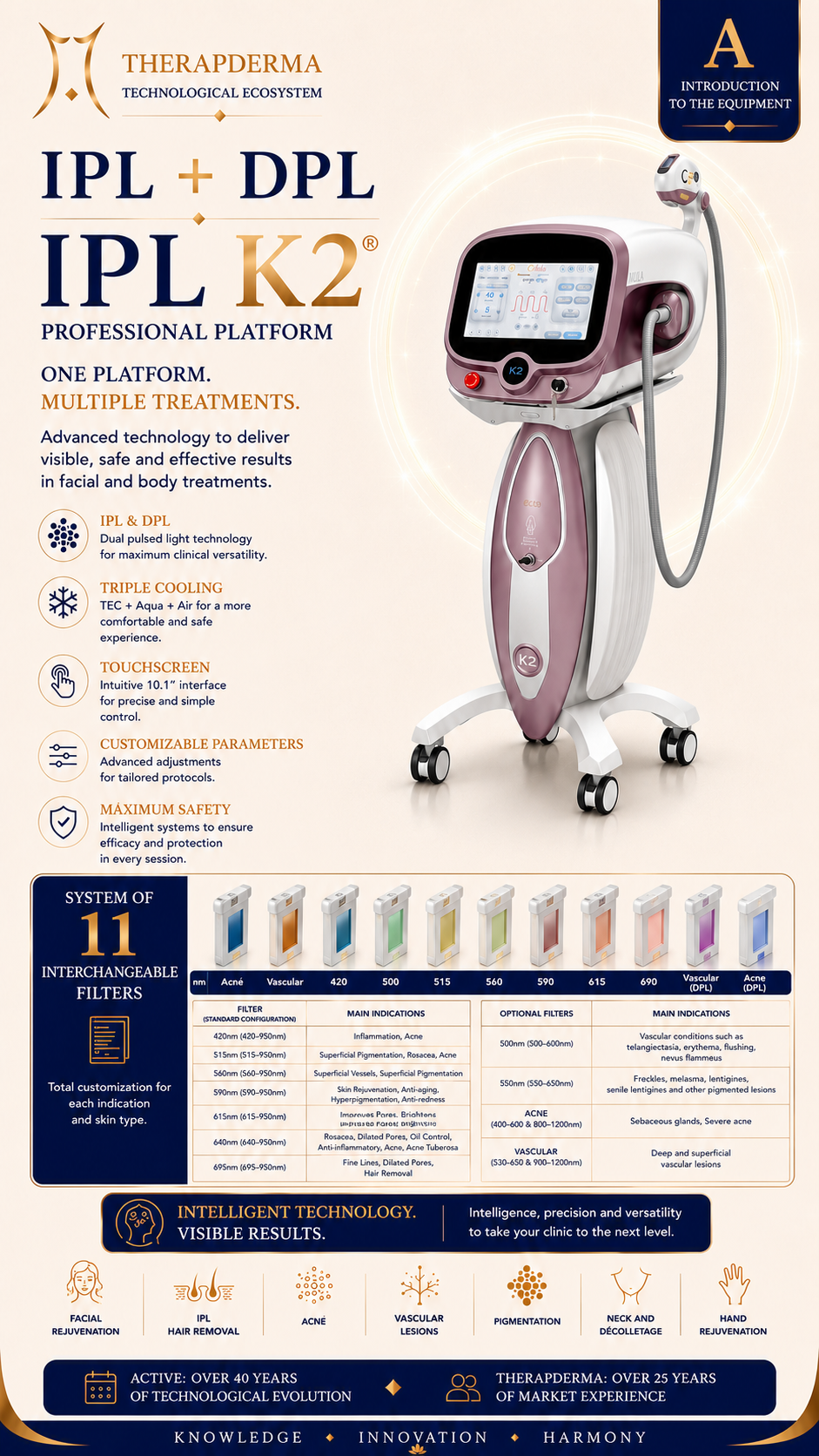

MULTIPLE FILTERS FOR DIFFERENT NEEDS

The system includes multiple professional filters designed for different aesthetic treatments.

Standard Filters

420nm (420–950nm)

• Acne
• Inflammation

515nm (515–950nm)

• Superficial pigmentation
• Acne rosacea

560nm (560–950nm)

• Superficial vessels
• Pigmented lesions

590nm (590–950nm)

• Skin brightening
• Redness reduction
• Anti-dullness

615nm (615–950nm)

• Rejuvenation
• Fine lines
• Skin quality improvement

640nm (640–950nm)

• Wrinkles
• Oil control
• Acne

695nm (695–950nm)

• Hair removal
• Enlarged pores
• Fine lines

OPTIONAL FILTERS

500nm (500–600nm)

• Facial flushing
• Telangiectasia
• Vascular lesions

550nm (550–650nm)

• Freckles
• Sun spots
• Pigmented lesions

ACNE Filter (400–600 & 800–1200nm)

• Severe acne
• Sebaceous gland treatments

VASCULAR Filter (530–650 & 900–1200nm)

• Deep vascular lesions
• Superficial vessels

HIGH-PRECISION HANDPIECE

The THERAPDERMA K2 IPL handpiece was designed to maximize precision and operator comfort.

Features

✔ Ergonomic design
✔ Fast energy adjustment
✔ Excellent skin contact
✔ Precise operation
✔ Faster workflow
✔ Maximum professional comfort

PRECISION TREATMENT HEADS

The system includes different treatment heads for various treatment areas and skin concerns.

38×10mm Treatment Head

Ideal for:

• Large facial areas
• Body treatments
• Hair removal

Ø8 Treatment Head

Ideal for:

• Small lesions
• Localized pigmentation
• Sensitive facial areas

ADVANCED COOLING SYSTEM

The THERAPDERMA K2 IPL integrates:

✔ TEC Electronic Cooling
✔ Water Cooling
✔ Air Cooling

This provides:

• Increased patient comfort
• Advanced skin protection
• System stability
• Safer energy delivery
• More comfortable sessions

TECHNICAL SPECIFICATIONS

Technology

IPL & DPL

Spot Size

14×38mm

Fluence

1–60 J/cm²

Frequency

1–30 Hz

Pulse Width

1–30 ms

Pulse Number

1–3

Pulse Interval

1–50 ms

Screen

10.1” Industrial Capacitive Touch Screen

Voltage

AC220V 50Hz

Power

≤2300W

Working Temperature

15–35°C

MAIN ADVANTAGES

✔ Multifunctional platform
✔ Intelligent A/B mode switching
✔ High treatment precision
✔ Faster procedures
✔ Maximum comfort
✔ Professional customization
✔ Modern premium design
✔ Easy operation
✔ Outstanding clinical results

ADVANCED TECHNOLOGY FOR PREMIUM RESULTS

The THERAPDERMA K2 IPL represents a new generation of aesthetic technology designed for clinics seeking:

✔ Maximum versatility
✔ Superior professional results
✔ Greater patient comfort
✔ Fully customizable treatments
✔ Advanced rejuvenation and skin correction technology

A complete solution for modern aesthetic medicine and advanced skin treatments.
